Nextcloud Talk: Updating the High Performance Backend

How-To: Nextcloud Talk

Photo by Vincent van Zalinge on Unsplash

2nd December 2024

I recently decided to try fixing the issues I had with my Nextcloud HPB = High Performance Backend. Some of the issues I experienced in Nextcloud Talk:

• Not working on certain browsers, like Firefox.

• Did not work on the Nextcloud Talk android app.

• For some users it did not work at all.

I thought it may have been related to the Reverse-Proxy configuration, but it turned out that I just needed to update the spreed-signaling-server. This is my journey:

Updating the HPB = High Performance Backend

When I first installed the HPB, the latest version of the script was 1.2.3. Now 1.2.6 is released. To update everything, I just had to download the latest version from github and run the new script. Just follow the instructions in the link.

https://github.com/sunweaver/nextcloud-high-performance-backend-setup/wiki/02-Setup-Script

Note: I had to temporary disable reverse-proxy and add a public AAAA record so the Let’s Encrypt certificate could be downloaded. Otherwise the script would fail. I later added my internal certificate in the nginx and turnserver settings, as described in my previous post.

Updating the Nextcloud Spreed Signaling Server

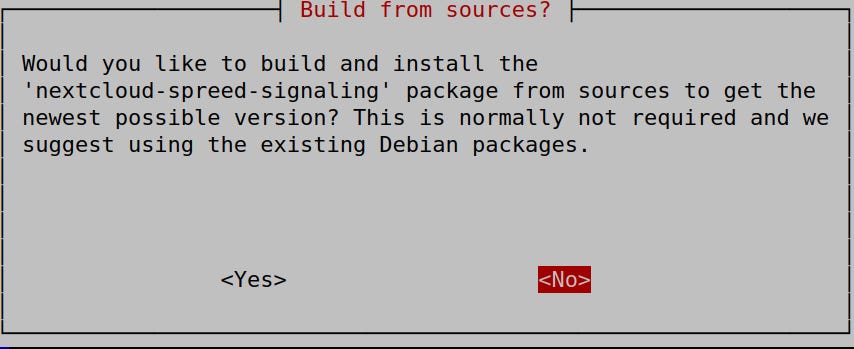

When I got to this step here during the install script, at first I chose “No”, because it said it isn’t normally required:

However, I got an error in Nextcloud that the HPB is out of date:

Error: Running version: 1.2.4-1~bpo12+1.debian; Server needs to be updated to be compatible with this version of Talk

Note: You can also verify the version of your signaling server by performing this CURL command:

curl -i https://<your-server-url>/standalone-signaling/api/v1/welcome

When I instead chose “Yes”, It connects, but the version is “unknown”, and is probably the reason why I had so many issues.

The solution was to update the Signaling server from a different source.

Installing Nextcloud-Spreed-Signaling Standalone Server

Install dependencies

Install following dependencies:

• Git

• Go, version 1.23

• Make

Git and make can be installed with apt, but the go version on debians repository is outdated so you need to download the latest version using wget. Follow the instructions here: https://www.cherryservers.com/blog/install-go-ubuntu

Download and compile nextcloud-spreed-signaling-server

I compiled it as root, because I ran the HPB script as root before:

sudo su
cd /root
git clone https://github.com/strukturag/nextcloud-spreed-signaling.git
cd nextcloud-spreed-signaling/
make build

Stop the old Spreed-Signaling-Server

systemctl stop nextcloud-spreed-signaling

Start the new Spreed-Signaling-Server

Run the following command from the nextcloud-spreed-signaling directory:

./bin/signaling --config /etc/nextcloud-spreed-signaling/server.conf

Verify in Nextcloud

Log in as admin and go to Admin Settings > Talk and verify Signaling Server Status

Make the new signaling server compatible with existing setup.

Add a new service

Now we need to add a new service. I chose to add instead editing existing service in case a new update will fix the problem for the old config.

1. Change the user privileges for the configuration file. This should have been done anyway for security reasons:

sudo chmod 600 /etc/nextcloud-spreed-signaling/server.conf
sudo chown _signaling:_signaling /etc/nextcloud-spreed-signaling/server.conf

Note: The username and group that is defined when running the HPB install script has prepended an underscore for some reason.

2. Copy binary file from the git directory to /usr/bin:

cp bin/signaling /usr/bin/signaling

3. Copy the service from the git directory to /etc/systemd/system:

cp dist/init/systemd/signaling.service /etc/systemd/system/signaling.service

4. Edit the signaling.service file to point towards your existing configuration file. Also adjust the user and group:

nano /etc/systemd/system/signaling.service

# Before:

[Unit]
Description=Nextcloud Talk signaling server

[Service]
ExecStart=/usr/bin/signaling --config /etc/signaling/server.conf
User=signaling
Group=signaling
Restart=on-failure

------------------------------------------------------------------------
# After:

[Unit]
Description=Nextcloud Talk signaling server

[Service]
ExecStart=/usr/bin/signaling --config /etc/nextcloud-spreed-signaling/server.conf
User=_signaling
Group=_signaling
Restart=on-failure

5. Disable old service and activate the new one:

systemctl daemon-reload
systemctl disable nextcloud-spreed-signaling
systemctl enable signaling
systemctl start signaling

Final Verification

Verify that the signaling service is running correctly:

root@sauna-hpb:~/nextcloud-spreed-signaling# systemctl status signaling
● signaling.service - Nextcloud Talk signaling server
     Loaded: loaded (/etc/systemd/system/signaling.service; enabled; preset: enabled)
     Active: active (running) since Sat 2024-11-16 13:38:36 UTC; 15min ago
   Main PID: 46402 (signaling)
      Tasks: 5 (limit: 2315)
     Memory: 5.3M
        CPU: 231ms
     CGroup: /system.slice/signaling.service
             └─46402 /usr/bin/signaling --config /etc/nextcloud-spreed-signaling/server.conf

Verify version:

wl@sauna-pub:~$ curl -i https://hpb.bastuklubben.online/standalone-signaling/api/v1/welcome
HTTP/1.1 200 OK
Server: nginx
...

{"nextcloud-spreed-signaling":"Welcome","version":"c0c0187f076e13918fc6a6a1f04890cd18643a4e"}

And in Nextcloud:

Now, the Nextcloud Talk experience should be much smoother.
