Installing FreeIPA with DNS service

How-To: FreeIPA

20th July 2023.

Quick start guide: https://www.freeipa.org/page/Quick_Start_Guide

This is a guide on how to install FreeIPA with DNS services.

Preparations

Network Settings

The FreeIPA server is going to have one NIC into the internal service network, where only mgmt and internal users have access to.

What NTP Servers to use

I’m using public NTP servers with IPv6 support. You are free to use the same if you want:

• ntp1.bit.nl

  2001:7b8:3:2c::123

• ntp2.bit.nl

  2001:7b8:3:2d::123

Hardware Requirements

You (preferably) need a Redhat or Fedora server installed. Minimum requirements say 2GB of RAM, but these are my settings:

• 4GB RAM

• 1vCPU with 2 Threads

• 1 drive with 40GB storage, Thick provisioning.

• 1 vNIC adapter

Note: I’m using FreeIPA for home-labbing. Your requirements may be different.

Initial Configurations

These are configuration steps done on the Fedora/Redhat server before installing the FreeIPA software.

Configure hostname

Set a hostname (not FQDN)

# nano /etc/hostname

sauna-ipa

Configure local DNS settings

DNS Rules for the /etc/hosts file:

1. The hostname cannot be localhost or localhost6.

2. The hostname must be fully-qualified (hostname.ipa.test)

3. The hostname must be resolvable. (It will be, once you edit /etc/hosts).

4. The reverse address that it resolves to must match the hostname.

Edit the /etc/hosts file to include the FQDN of the IPA server. The fully-qualified name must come first. Any SAN names can follow. It should look like this:

# nano /etc/hosts

# FreeIPA:
10.11.1.11              sauna-ipa.bastuklubben.online ipa.bastuklubben.online sauna-ipa
2001:DB8:1234:b010::b  sauna-ipa.bastuklubben.online ipa.bastuklubben.online sauna-ipa

Note: You also need to add these entries above to the remote host you are configuring from, if applicable (if you are using, for example, SSH to the ipa server).

Firewall Openings

Fedora comes with firewalld enabled by default.

sudo firewall-cmd --add-service freeipa-4 --add-service=dns --add-service=ntp --permanent

Verify: It should look similar to this:

# firewall-cmd --list-services
dns freeipa-4 freeipa-ldap freeipa-ldaps kerberos ntp ssh

Note: For more information about firewalld commands:
https://docs.fedoraproject.org/en-US/quick-docs/firewalld/

Installing the FreeIPA server

From a root terminal:

dnf install freeipa-server
dnf install freeipa-server-dns

Note: If your domain, let’s say bastuklubben.online, is already resolvable by a DNS provider, you will likely get an error. You can either configure a subdomain like "internal.bastuklubben.online” to use for your local services, or you can use the “allow zone overlap” when installing. Be warned though that your public services will not be resolvable from your internal networks; unless you add those entries to FreeIPA.

https://lists.fedoraproject.org/archives/list/freeipa-users@lists.fedorahosted.org/thread/7VAT4RNCHMCL2DI52YM2HIKQL2MIRDEB/

ipa-server-install --allow-zone-overlap

The log file for this installation can be found in /var/log/ipaserver-install.log
==============================================================================
This program will set up the IPA Server.
Version 4.10.1

This includes:
* Configure a stand-alone CA (dogtag) for certificate management
* Configure the NTP client (chronyd)
* Create and configure an instance of Directory Server
* Create and configure a Kerberos Key Distribution Center (KDC)
* Configure Apache (httpd)
* Configure SID generation
* Configure the KDC to enable PKINIT

To accept the default shown in brackets, press the Enter key.

Do you want to configure integrated DNS (BIND)? [no]: yes

DNS Recursion Configuration

DNS recursion is used to forward DNS requests to a public DNS server, when they are not resolvable by the IPA server.

You should be able to set the DNS forwarders in the installation, but if it fails, here is where you configure it from the WebGUI:

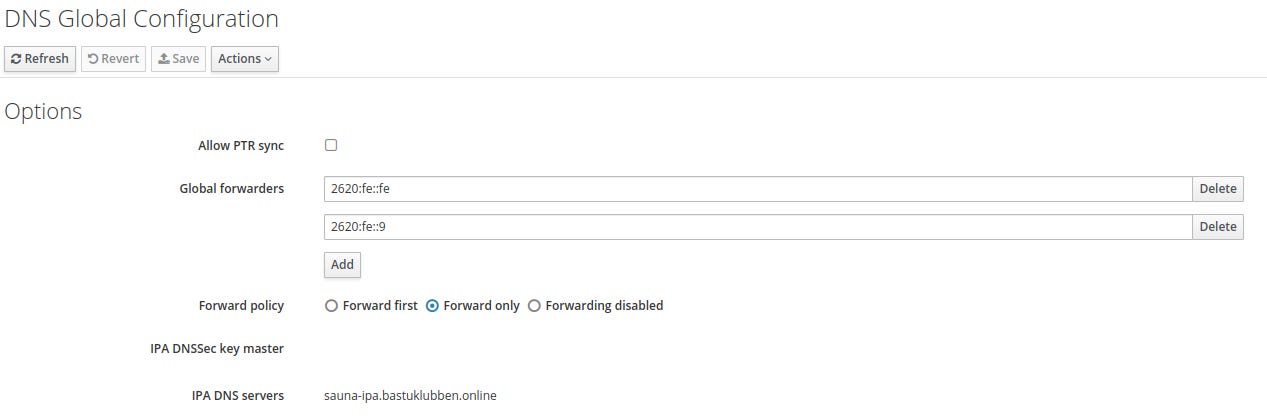

Step 1: In the webGUI: Network Services > DNS global configuration

• Set IPv6 addresses

• set forward policy to forward only

Note: Apparently, only IPv4 works when using OpenDNS addresses. I switched to use Quad9 and that worked a lot better with IPv6 for some reason.

Step 2: From CLI you have to edit this file to allow recursion for your specific networks:

nano /etc/named/ipa-ext.conf

/* User customization for BIND named
 *
 * This file is included in /etc/named.conf and is not modified during IPA
 * upgrades.
 *
 * "options" settings must be configured in /etc/named/ipa-options-ext.conf.
 *
 * Example: ACL for recursion access:
 *
 */

acl "trusted_network" {
    localhost;
    10.8.0.0/13;
    2001:DB8:1234:8000::/49;
};

Then, enable recursion from this file:

sudo nano /etc/named/ipa-options-ext.conf

/* User customization for BIND named
*
* This file is included in /etc/named.conf and is not modified during IPA
* upgrades.
*
* It must only contain "options" settings. Any other setting must be
* configured in /etc/named/ipa-ext.conf.
*
* Examples:
* allow-recursion { trusted_network; };
* allow-query-cache { trusted_network; };
*/

/* turns on IPv6 for port 53, IPv4 is on by default for all ifaces */
listen-on-v6 { any; };

/* Enable DNS forwarding */
allow-recursion { trusted_network; };
allow-query-cache { trusted_network; };

/* dnssec-enable is obsolete and 'yes' by default */
dnssec-validation yes;

Note: The above files are written in C. When you comment in C, you have to put "/*" in the start, and "*/" at the end. If you miss that detail, it can comment out the whole file by mistake.

Step 3: restart FreeIPA:

ipactl restart

Conclusion

That is how you install FreeIPA with DNS service. I hope I didn’t forget any steps. The most frustrating parts for me was the caveat with OpenDNS, and that I had to learn about C commenting the hard way.
